Leírás és Paraméterek

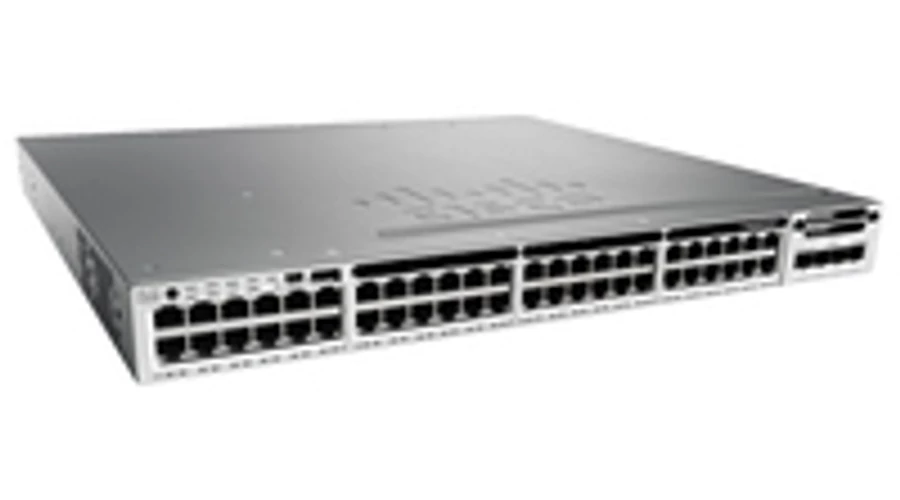

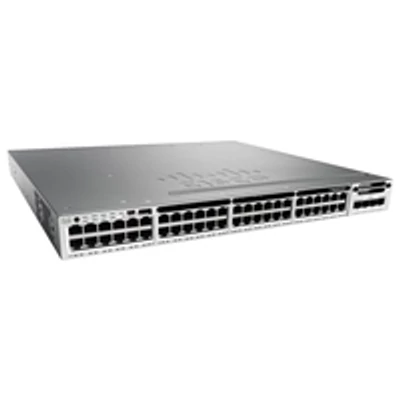

WS-C3850-48P-L Cisco Catalyst 3850-48P-L - Switch
- 48 x 10/100/1000 (PoE+)
- PoE+ (435 W)
Cisco Catalyst WS-C3850-48P-L. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.11ac,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE.... Power over Ethernet (PoE)
The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
Catalyst 3850 Enables Unified Access
Cisco Unified Access is the convergence of the wired and wireless networks into one physical infrastructure with greater intelligence, simplicity, performance, and open interfaces. One network starts with Cisco Catalyst 3850 switches, which combine wired and wireless by supporting wireless tunnel termination and full wireless LAN controller functionality.
Best-in-Class Stackable Access Switch
The Cisco Catalyst 3850 Switch currently offers the industry's highest 480 Gbps stacking bandwidth to meet network demand, including gigabit desktop and 802.11ac wireless. The switch delivers advanced capabilities such as a high-performance 24/48 port GE switch, 480 G stacking, Power over Ethernet Plus, StackPower and Flexible NetFlow on all ports.
Converged Wired and Wireless Access
The Cisco Catalyst 3850 Switch brings Cisco IOS excellence to wireless by extending wired infrastructure features, resiliency, granular QoS, and scalability. It provides built-in wireless controller capabilities with 40 G wireless throughput, support for 50 access points and 2000 wireless clients per switch or stack, and support for 802.11ac.
Distributed Intelligent Services
The Cisco Catalyst 3850 Switch delivers common intelligent services across wired and wireless for security and policy, application visibility and control, network resiliency, smart operations, and more. The switch can enable multi-level QoS based on granular information such as SSID, client, radio, application, and fair share policies for wireless.
Foundation for Cisco Open Network Environment
The heart of Cisco Catalyst 3850 is the new ASIC with programmability for future features and intelligence with investment protection. The new ASIC provides a foundation for converged APIs across wired and wireless, software-defined networking (SDN) support, and Cisco One Platform Kit (OnePK)
- Converged wired plus wireless access
The Cisco Catalyst 3850 is the first stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE software-based platform. With this, Cisco has pioneered a host of rich capabilities such as high availability based on stateful switchover (SSO) on stacking, granular QoS, security, and Flexible Netflow (FNF) across wired and wireless in a seamless fashion.
- Flexible NetFlow (FNF)
Full visibility into the wired plus wireless traffic is achieved because of the access point Control and Provisioning of Wireless Access Points (CAPWAP) tunnel termination on the switch. This helps identify users and user traffic flows in order to identify potential attackers and take corrective action at the access layer before the attack penetrates further into the network. This is achieved using FNF, which monitors every single flow entering and exiting the switch stack for wired and wireless users. It also helps identify the top wired/wireless talkers and enforce appropriate bandwidth provisioning policies.
- Advanced wired plus wireless QoS capabilities
The 3850 switch has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth management starting at the per-access-point level and drilling further down to per-radio, per-service set identification (SSID), and per-user levels. This helps manage and prioritize available bandwidth between various radios and various SSIDs within each radio on a percentage basis. The switch is also capable of automatically allocating equal bandwidth among the connected users within a given SSID.
- Provides a rich set of security features
The Cisco Catalyst 3850 provides a rich set of security features for wired plus wireless users. Features such as IEEE 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, IP Source Guard and control plane protection, wireless intrusion prevention systems (WIPSs), and so on enable protection against unauthorized users and attackers. With a variety of wired plus wireless users connecting to the network, the switch supports session-aware networking, in which each device connected to the network is identified as one session, and unique access control lists (ACLs) and/or QoS policies can be defined and applied using the ISE for each of these sessions, providing better control on the devices connecting to the network.
